High Speed And High Effiency CO2 Flying Laser Marking Machines For Variable Applications
Want to add identification to your product and increase brand value? Then you need an efficient laser marking machine! Our laser marking machine is your best choice.
Our laser marking machine uses the most advanced laser technology to achieve super fast and accurate marking, which is several times faster than the traditional method of marking! Moreover, our laser marking machine uses high -quality laser, which continues to work for a long time, which greatly improves work efficiency.
Our laser marking machine is suitable for various materials, including metal, plastics, glass, ceramics, etc. The marking effect is very good. We also provide a variety of fonts and pattern choices, as well as the function that can be customized to meet the needs of different customers.
In addition, our laser marking machine also has easy -to -use operating interface and highly intelligent functions. Just a few simple steps can easily complete the complex marking task. In addition, our laser marking machine also supports the integration of automated production lines, which greatly improves production efficiency.
In short, our laser marking machine is a high -quality and efficient product that can easily meet your production needs. If you want to improve production efficiency and shorten the production cycle, don't hesitate, contact us immediately, we will provide the best solution!
The Characteristics and Advantages of Welljets Laser Machine
Marking Range:110mm×110mm
The maximum speed of laser scanning is 20,000 mm per second
Power Switch: The laser and the control system have their own separate switches which can control the power on and off independently
The Marking Head fixed Mode:The support can be moved on the ground, and the light path can rotate 360 degrees to correspond to different angles
Controller Shell:Stainless steel, Anodized Aluminum
The laser’s front Shell :Stainless steel, Anodized Aluminum
Protection Degree:IP54 above
Cooling Way:Air Cooling
Working Environment Temperature:-5-45℃
Working Conditions:No electrostatic interference
Environmental Protection Requirements: Noise ≦60 decibels

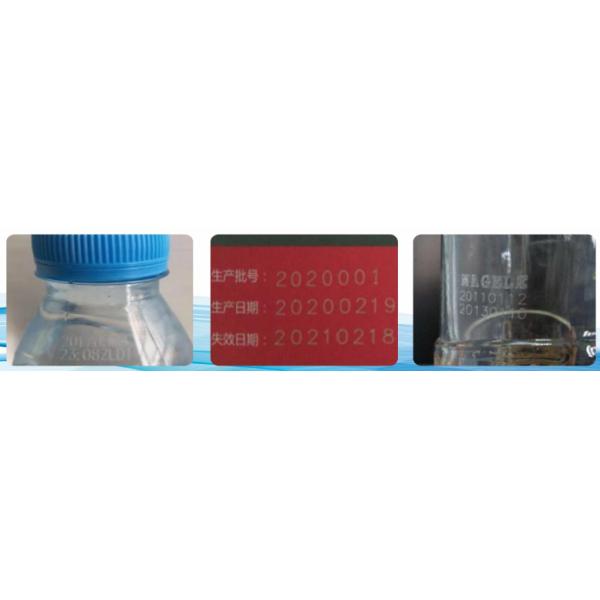

Printed Samples:
Laser Type
﹡Carbon dioxide laser λ=9.3um, 10.3um, 10.6um.
﹡MTBF>=30,000 hours
| Model | F1030 | F1060 |
| Power | 30W | 60W |
| Characters/S | 1200 | 1300 |
| Speed MS/S * | 12000 | 12000 |
Focal Length: 110mm (Standard Equipped)
Maximum speed: 12000mm/s
Printing Features
﹡Characters Height: 0.4mm to 70mm
﹡Number of Lines: Limited only by character height and allowable print area
﹡Marking area :110mm*100mm to 650mm*650mm
﹡Minimum line width: 0.1mm
Marking Data
﹡Serial number, text, date, time, fonts, etc.
﹡Multi - language support, user - defined fonts, counter, shift code
﹡Codes Support: Barcode, QR-code, Code128, Code 39, Data-Matrix Code,
﹡Document Type: BMP/DXF/HPGL/JPEG
﹡Graphic Element: Points, Linear arc, rectangle, polygon, ellipse, circle polygons, ellipses, circles
