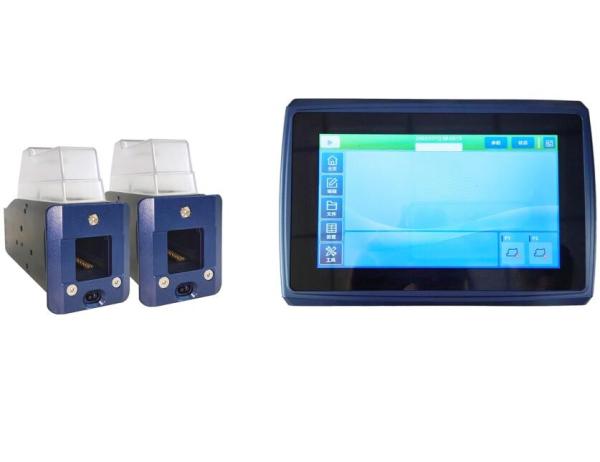

Welljets TIJ Printer For Easy Operation & Highly Cost-Effective Thermal Inkjet
Welljets thermal inkjet printers with reliable performance and advance features will create more value for you.
Welljets J2000 series thermal inkjet printers are based upon the HP TIJ2.5 technology which offer consistent, high quality and are versatile, easy to integrate, easy to operate. The Welljets TIJ printers produce clear, easy-to-read characters, barcodes, alternate fonts, logos and barcodes like GS1 DataMatrix and QR codes. There is no costly maintenance associated with pumps, filters or tubing. The simples design translates into easy operation through fast cartridge replacement.
Intelligent
Linux operation system, support USB import database, support real-time variable data.
High-resolution prints for a premium look
With a print resolution of up to 600dpi, Welljets TIJ the best inkjet printer for batch coding, delivers high-quality prints that bring out the best elements of your products.
Easy operation
The printing body and nozzle are separately work together with 360 degrees printing kit, printing angle can be adjusted arbitrarily, anti-collision device and fine-tuning device can be optional.
Highly cost-effective
Cartridge-based technology makes Welljets TIJ one of our most cost-effective inkjet coding machines. The only thing you need to buy is new cartridges.
99.9% uptime
In the case of printer failure, you only need to replace the cartridge to get the printer running again – a process that takes less than a minute.
Virtually maintenance-free
Cartridge-based technology makes the Welljets TIJ virtually maintenance-free.
Technical Parameters:
| Technology | HP TIJ 2.5 Thermal Inkjet Technology |
| Resolution | Vertical: 600 dpi; Horizontal: 40-1200 dpi. (Single head) |
| Communication Protocol | Plain code protocol, easy for system integration and secondary development. |
| Screen | 7 inches color capacitive touch screen |
| Dimensions | Controller: 207*134*34mm |
| Print head: 156*93*49mm |
| Language | Chinese, English, Korean, Spanish, Japanese, French, German, Italian, Turkish |
| Keyboard | Chinese, English, Korean, Arabic, Russian, Spanish, French, German |
| Counter | Ordinary counter, the carry bit source can be set flexibly |
| Printing Height | 1~25.4mm (Two printheads, free combination) |
| Printing Speed | Up to 60m/min |
| Printing Performance | The speed of QR code printing up to 5pcs/sec. |
| Supported Barcode | Codebar, Code25, Code39, Code93, Code128, UPCA, UPCE, EAN |
| QR Code (GSI supported), Data Matrix (GSI supported), Grid Matrix, Maxicode, PDF417 (Others upon request) |
| Date Format | The date format can be set flexibly |
| Interface | Ethernet interface*1 |
| USB interface*1 (USB flash drive, scanner and auxiliary communication equipment) |
| DVI interface: connect to cable box or extended cable box |
| Cable box interface: alarm kit, photocell, encoder, I/O(2 inputs 2 outputs), RS232 |
| Extended Cable box interface: alarm kit, photocell, encoder, I/O (6 inputs 5 outputs), RS232 |
| DC interface: power entry |
| DB15 interface: connect with printhead *2 |
| Ink Management | Recognize the ink type and choose the most suitable parameters automatically |
| Only original HP cartridges are supported; Automatic measurement system for ink consumption. |
| Set up | Equipped with standard side printing/down printing bracket. Optional Spring-back mechanism. |
| Environment Requirements | Operating environment: -10℃-- +55℃; |
| Storage environment: -20℃-- +70℃; |
| Input Power | AC 100-240V/50-60Hz |
| Output Power | 24.0V 4A, 96.0W |
| Product Certification | CE, FCC |
Product Tags:
|
|
HP TIJ Thermal Industrial Inkjet Printer Easy Operation High Resolution Images
|
